螺牙規格：公制牙 Metric

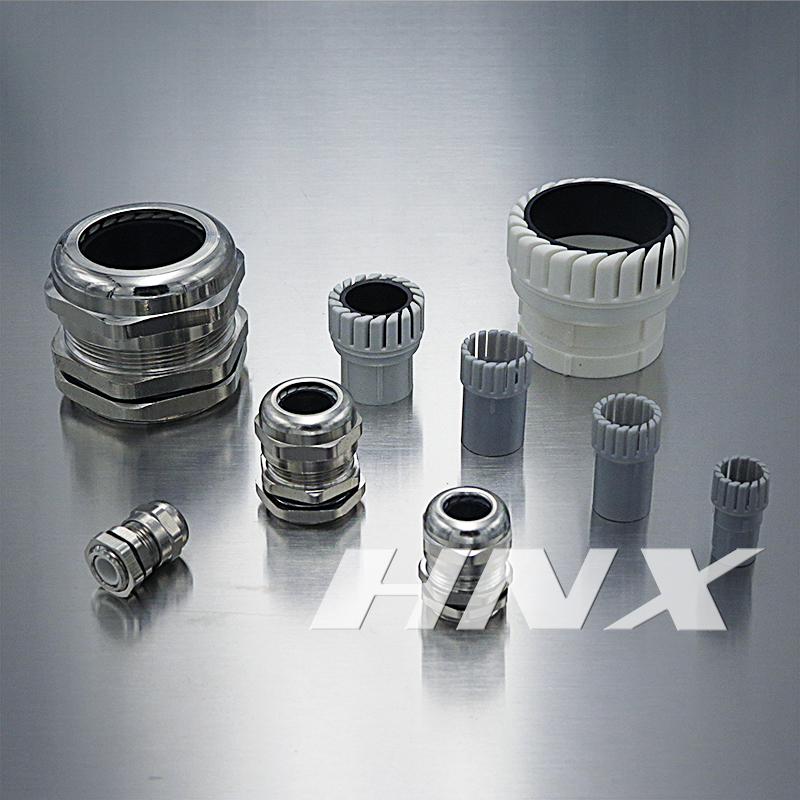

產品材質：接頭主體部位采用黃銅鍍鎳制成，夾緊件采用尼龍塑料（PA）制成，密封件和O型密封圈均采用丁腈橡膠（NBR）制成。
工作溫度：靜態：-40℃到100℃，短時間達120℃。動態：-20℃到80℃，短時間達100℃
螺紋長度： 短螺紋適合用于薄型機板的開孔或附有內螺紋的設備上，長螺紋適合接合厚型機板。螺紋加長型可定制。
產品特性：特殊夾緊爪與夾緊圈凹凸相扣之設計，配合迫緊頭裝配省時便利，夾緊電纜范圍大、抗拉力特強、可防水、防塵、抗鹽、耐酸堿、酒精、油脂及一般溶劑。
使用方法: 金屬電纜防水接頭是電纜的配套產品，接頭可將電纜鎖緊，另一端可接入設備箱體上，也可以根據選用螺紋接入進出口為內螺紋的電動設備上。
更多選擇：可根據客戶實際需要，特別定制。需要訂購時歡迎來電咨詢。
| 防爆型金屬電纜接頭--公制螺紋M型系列 |
| 產品編號 |
螺紋規格 AG |
適用電纜 |
螺紋外徑 |
機板口徑 |
螺紋長度 GL(mm) |
接合長度H(mm) |
扳手徑 |
| HX-NPM12/EX |
M12*1.5 |
6.5-3 |
12 |
12-12.2 |
7 |
19 |
14 |
| HX-NPM14/EX |
M14*1.5 |
8-4 |
14 |
14-14.2 |
7 |
19 |
18 |
| HX-NPM16/EX |
M16*1.5 |
8-4 |
16 |
16-16.2 |
8 |
20 |
18 |
| HX-NPM18/EX |
M18*1.5 |
10-5 |
18 |
18-18.2 |
8 |
21 |
20 |
| HX-NPM20/EX |
M20*1.5 |
12-6 |
20 |
20-20.2 |
8 |
22 |
22 |
| HX-NPM22/EX |
M22*1.5 |
14-10 |
22 |
22-22.2 |
8 |
23 |
24 |
| HX-NPM27A/EX |
M27*1.5 |
18-13 |
27 |
27-27.2 |
9 |
27 |
30 |
| HX-NPM27B/EX |
M27*2 |
18-13 |
27 |
27-27.2 |
9 |
27 |
30 |
| HX-NPM28A/EX |
M28*1.5 |
18-13 |
28 |
28-28.2 |
9 |
27 |
30 |
| HX-NPM28B/EX |
M28*2 |
18-13 |
28 |
28-28.2 |
9 |
27 |
30 |
| HX-NPM30A/EX |
M30*1.5 |
18-13 |
30 |
30-30.2 |
9 |
29 |
30/32 |
| HX-NPM30B/EX |
M30*2 |
18-13 |
30 |
30-30.2 |
9 |
29 |
30/32 |
| HX-NPM32A/EX |
M32*1.5 |
22-15 |
32 |
32-32.2 |
10 |
29 |
35 |
| HX-NPM32B/EX |
M32*2 |
22-15 |
32 |
32-32.2 |
10 |
29 |
35 |
| HX-NPM33A/EX |
M33*1.5 |
22-15 |
33 |
33-33.2 |
10 |
29 |
35 |
| HX-NPM33B/EX |
M33*2 |
22-15 |
33 |
33-33.2 |
10 |
29 |
35 |
| HX-NPM37A/EX |
M37*1.5 |
25-18 |
37 |
37-37.2 |
10 |
31 |
40 |
| HX-NPM37B/EX |
M37*2 |
25-18 |
37 |
37-37.2 |
10 |
31 |
40 |
| HX-NPM40A/EX |
M40*1.5 |
25-18 |
40 |
40-40.2 |
11 |
31 |
40/45 |
| HX-NPM40B/EX |
M40*2 |
25-18 |
40 |
40-40.2 |
11 |
31 |
40/45 |
| HX-NPM40C/EX |
M40*1.5 |
30-22 |
40 |
40-40.2 |
11 |
35 |
45 |
| HX-NPM40D/EX |
M40*2 |
30-22 |
40 |
40-40.2 |
11 |
35 |
45 |
| HX-NPM42A/EX |
M42*1.5 |
30-22 |
42 |
42-42.2 |
11 |
35 |
45 |
| HX-NPM42B/EX |
M42*2 |
30-22 |
42 |
42-42.2 |
11 |
35 |
45 |
| HX-NPM47A/EX |
M47*1.5 |
33-25 |
47 |
47-47.2 |
11 |
37 |
50 |
| HX-NPM47B/EX |
M47*2 |
33-25 |
47 |
47-47.2 |
11 |
37 |
50 |
| HX-NPM48A/EX |
M48*1.5 |
33-25 |
48 |
48-48.2 |
11 |
37 |
50/52 |
| HX-NPM48B/EX |
M48*2 |
33-25 |
48 |
48-48.2 |
11 |
37 |
50/52 |
| HX-NPM54A/EX |
M54*1.5 |
38-32 |
54 |
54-54.2 |
12 |
38 |
57 |
| HX-NPM54B/EX |
M54*2 |
38-32 |
54 |
54-54.2 |
12 |
38 |
57 |
| HX-NPM56A/EX |
M56*1.5 |
38-32 |
56 |
56-56.2 |
12 |
38 |
57/59 |
| HX-NPM56B/EX |
M56*2 |
38-32 |
56 |
56-56.2 |
12 |
38 |
57/59 |
| HX-NPM60A/EX |
M60*1.5 |
44-37 |
60 |
60-60.2 |
13 |
38 |
64 |
| HX-NPM60B/EX |
M60*2 |
44-37 |
60 |
60-60.2 |
13 |
38 |
64 |
| HX-NPM63A/EX |
M63*1.5 |
44-37 |
63 |
63-63.2 |
13 |
38 |
64/68 |
| HX-NPM63B/EX |
M63*2 |
44-37 |
63 |
63-63.2 |
13 |
38 |
64/68 |
| HX-NPM64A/EX |
M64*1.5 |
44-37 |
64 |
64-64.2 |
13 |
38 |
64/68 |
| HX-NPM64B/EX |
M64*2 |
44-37 |
64 |
64-64.2 |
13 |
38 |
64/68 |
|
